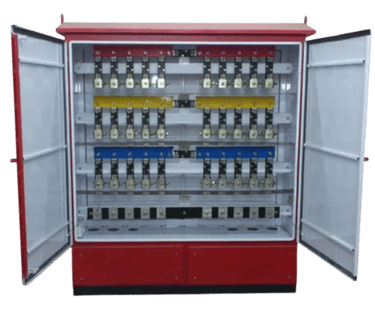

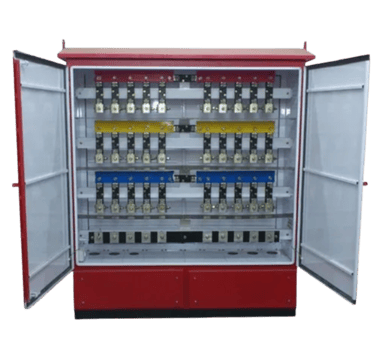

Feeder Pillar Panel

The Feeder Pillar Panel manufactured by JP Power Switchgear and Control is a robust, free-standing, floor-mounted outdoor enclosure. It serves as a centralized LT (Low-Tension) distribution point, typically installed near a distribution transformer or load center to facilitate localized power distribution, protection, and isolation for multiple outgoing feeder cables.

Key Features

• Outdoor Construction: Heavy-duty, weatherproof, and vermin-proof sheet metal enclosure, usually with an IP54 or IP55 rating.

• Integrated Busbar Chamber: Houses a dedicated, well-insulated copper or aluminum busbar system.

• Multiple Outgoing Feeders: Contains multiple sets of HRC fuse-links or molded case circuit breakers MCCBs.

• Load Break Switch (Optional): May include a main load break switch or MCCB on the incoming side.

• Cable Management: Designed with generous space for cable termination and includes necessary cable glands.

Applications

Feeder Pillar Panels are essential elements in secondary power distribution, bridging the gap between the transformer and the end-users:

• Residential and Commercial Colonies: Distributing power from the transformer to individual residential blocks, shops, or streetlights.

• Industrial Sites: Serving as intermediate distribution points to feed power to different workshops or factory departments.

• Public Utilities: Used for power distribution to street lighting networks, traffic signals, and water pumping stations.

• Transformer LT Side: Often installed directly next to a pole-mounted or pad-mounted distribution transformer.

Why Choose JP Power Feeder Pillar Panels?

• Superior Durability: We manufacture the enclosure using robust steel and advanced powder coating, guaranteeing a long, corrosion-free service life even in harsh, exposed outdoor locations.

• Safety and Accessibility: Our design provides compartmentalization and utilizes high-quality fuse-switch disconnectors, allowing for safe, isolated access to individual feeders without shutting down the entire pillar.

• High-Grade Components: We install only high-rupturing capacity (HRC) fuses and certified switchgear, ensuring reliable short-circuit protection and coordination.

• Custom Configuration: We can custom-configure the pillar size, busbar rating, and the mix of outgoing MCBs/MCCBs to perfectly match the specific load and protection requirements of your distribution network.
