Lift Panel

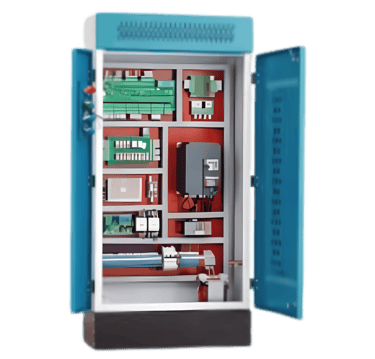

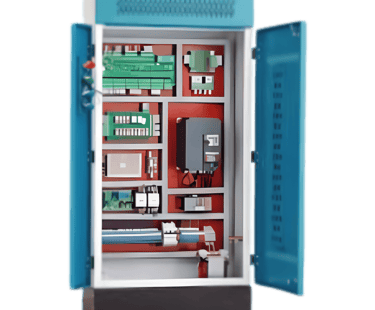

A Lift Panel (or Elevator Control Panel) manufactured by JP Power Switchgear and Control is a sophisticated Low-Tension (LT) assembly that serves as the brain and power distribution center for an elevator system. It controls the movement, speed, safety functions, and communication of the lift car, ensuring reliable, precise, and safe vertical transportation.

Key Features

• Motor Control: Houses the Variable Voltage Variable Frequency (VVVF) Drive or other motor starting mechanisms (like VFD) for the lift's traction machine.

• Safety Circuitry: Integrates a complex safety chain logic, monitoring door locks, pit switches, limit switches, and overspeed governors.

• Landing and Car Operating Panel (LOP/COP) Interface: Manages call registration, floor direction indication, and communication.

• Emergency Rescue Device (ARD): Often includes or interfaces with an ARD (Automatic Rescue Device) or UPS (Uninterruptible Power Supply).

• Protection Devices: Includes protection against overload, short circuits, overcurrent, and phase sequence errors.

Applications

Lift Panels are essential for any vertical structure used by the public or for material transport:

• Residential Buildings: High-rise apartments and condominiums.

• Commercial Infrastructure: Office towers, shopping malls, and hotels.

• Healthcare: Hospitals and medical centers (requiring specialized bed lifts).

• Industrial/Logistics: Factories, warehouses, and ports (utilizing freight elevators).

Why Choose JP Power Lift Panels?

• Reliability and Precision: We use high-quality VVVF drives and control logic, ensuring smooth, accurate floor leveling and minimal breakdown risk, which is critical for lift reliability.

• Safety Compliance: Our panels are designed and built to meet or exceed relevant national and international safety codes, providing a reliable foundation for your lift's mandatory safety certification.

• Seamless ARD Integration: We ensure perfect integration and optimal configuration of ARD systems, providing fast, dependable emergency rescue functionality during power outages.

• Customization for Load: We size the panel and motor control components to precisely match your lift's load capacity and speed requirements, guaranteeing optimal performance and energy consumption.
